HYDAC阀SAF系列技术参数
SPECIFICATIONS | |
Operating fluids | Mineral oil to DIN 51524 Part 1 and Part 2 (other fluids on request) |
Viscosity range | min. 10 mm²/s max. 380 mm²/s |
Filtration | Max. permitted contamination level of the operating fluid to ISO 4406 Class 21/19/16 or SAE AS 4059 Class 11.We recommend a filter with a minimum retention rate of ß20 ≥ 100.The fitting of filters and regular replacement of the filters guarantees correct operation, reduces wear and extends the service life. |
Permitted operating temperature | Standard design -10 °C ... +80 °C (ambient temperature for E type limited to -10 °C ... +60 °C) Low-temperature version -40 °C ... +80 °C |
Max. operating pressure | 400 bar |
Model with solenoid-operated pressure release | Solenoid-operated by means of pressure-tight, oil-immersed, |
Type of voltage | DC solenoid When connected to AC voltage, the necessary DC voltage is produced by means of a bridge rectifier connector. Voltage tolerance |
Nominal current | Dependent on the nominal voltage |
Power consumption | p20 = 18 W |
Switching time | This depends on the symbol, pressure at the individual connections and the flow rate |
HYDAC阀SAF系列介绍
HYDAC 安全截止阀块是一种液压附件元件，用于防止流体侧压力过高，并关闭和释放液压蓄能器的压力。
HYDAC 泄压阀 (DB12) 用于 SAF 系列。它是一种采用锥阀结构的直动式泄压阀，具有出色的开启和关闭特性。此版本的 DB12 符合欧洲压力设备指令 (PED) 的要求，带有 CE 标志，并随附符合性声明和操作说明。
The HYDAC safety and shut-off block is a hydraulic accessory element that is used to protect against excess pressure on the fluid side and to shut-off and relieve hydraulic accumulators.
The HYDAC pressure relief valve (DB12) is used in the SAF series. It is a direct-acting pressure relief valve in a poppet valve construction with excellent opening and closing characteristics. This version of the DB12 complies with the requirements of the European
Pressure Equipment Directive (PED) with CE marking and is supplied with a declaration of conformity and operating instructions.

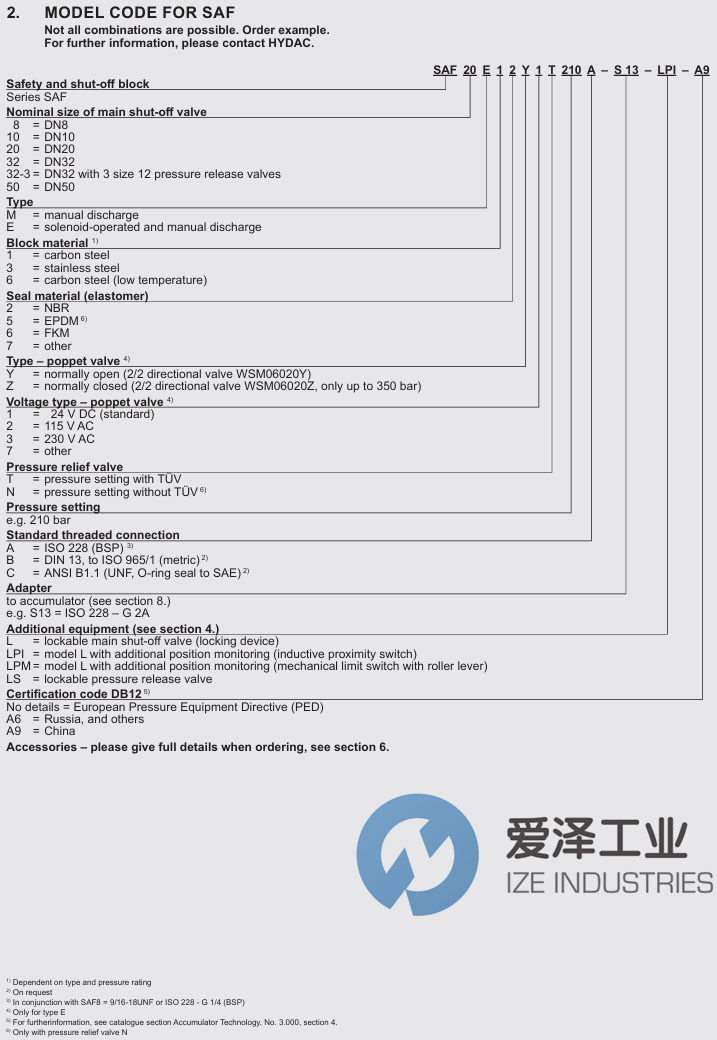

HYDAC阀SAF系列选型
HYDAC阀SAF系列其他常用型号：
HYDAC SAF32M12N210A-S309
HYDAC SAF32M12N330A-S309
HYDAC SAF32M12T200A-S309
HYDAC SAF32M12T400A
HYDAC SAF32M12T350A
HYDAC SAF32M12T315A
HYDAC SAF32M12T300A
HYDAC SAF32M12T250A
HYDAC SAF32M12T200A
HYDAC SAF32M12T150A
HYDAC SAF32M12T100A
HYDAC SAF32M12T070A
HYDAC SAF32M12T050A
HYDAC SAF32M12T035A
HYDAC VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HYDA阀SAF32M12N210A-S309的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
HYDAC阀SAF系列SAF32M12N210A-S309技术参数及介绍
